86mm flange Integrated Driver Stepper Motor
$0.00

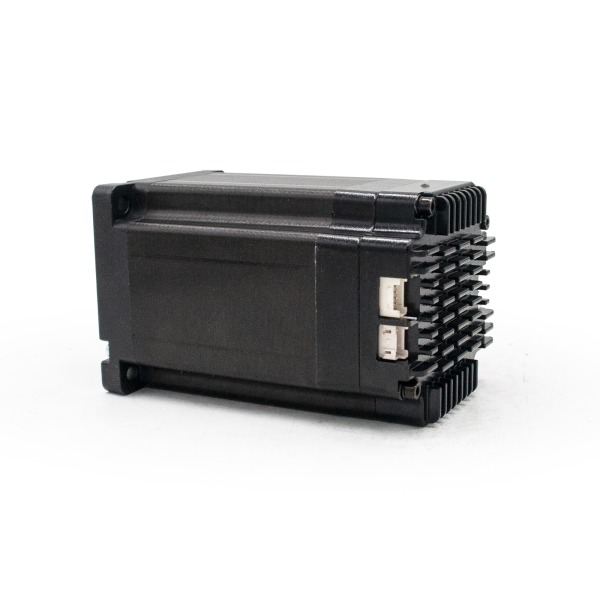

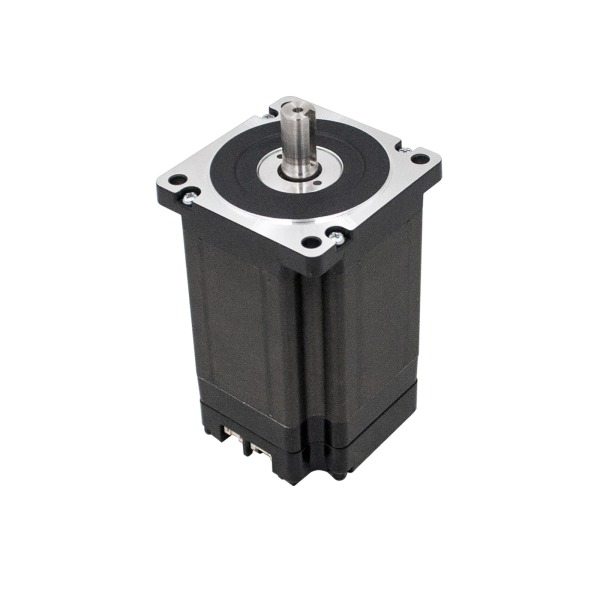

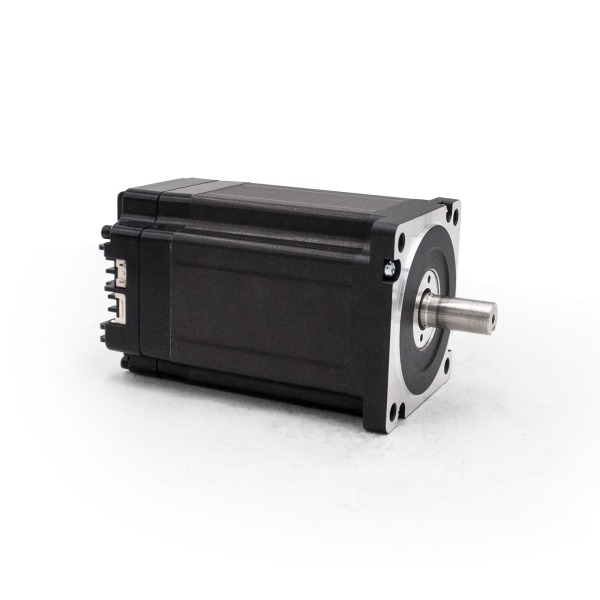

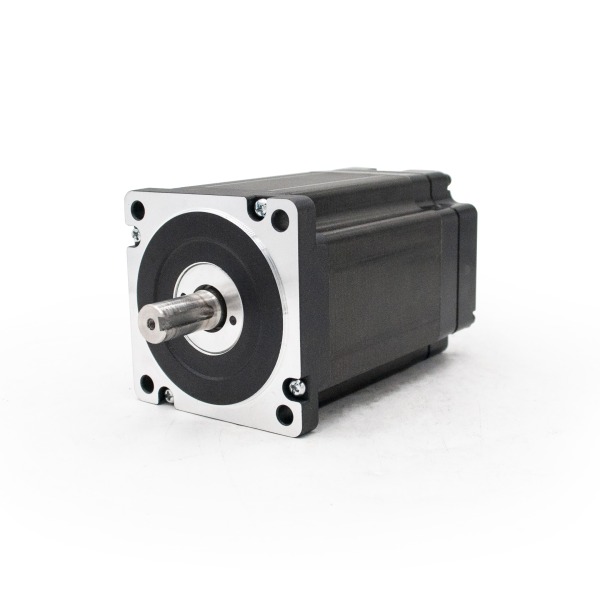

This 86-series stepper motor integrates the motor body and driver into a single unit, with the following core characteristics:
1. Core Integration Advantage
As a driver-integrated motor, it combines the stepper motor body and drive circuit in one housing. This eliminates the need for a separate driver (saving installation space) and simplifies wiring (no extra cables between the motor and driver), making it ideal for compact automation setups or small equipment.

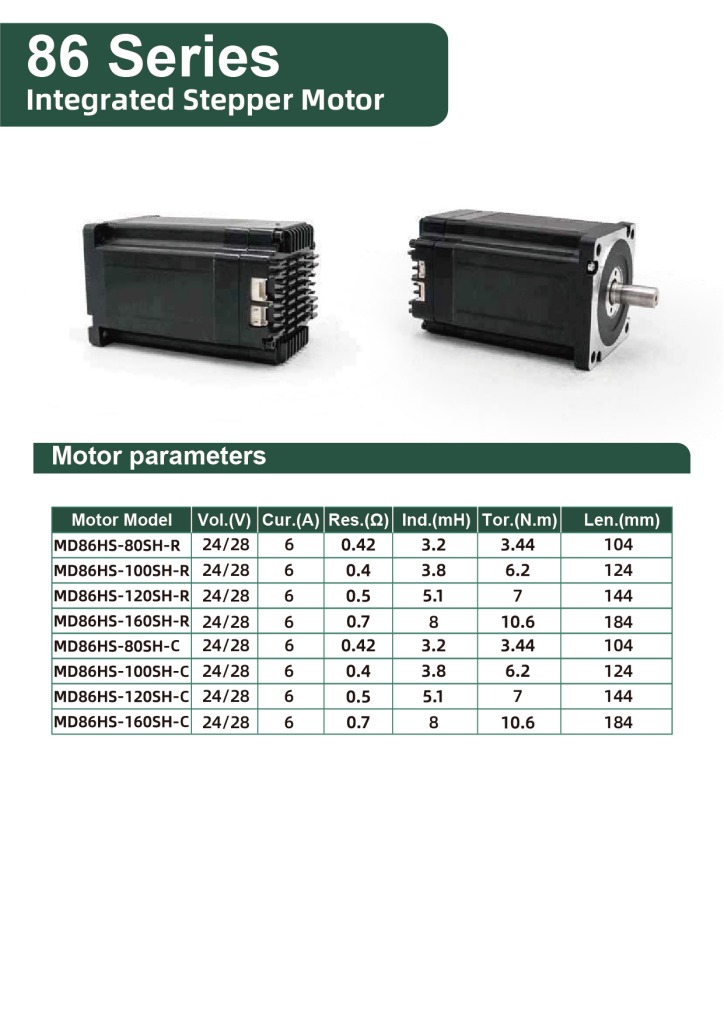

2. Parameter Characteristics (Based on the Table)
- الجهد االكهربى & حاضِر: Universal compatibility with 24V/28V dual voltage and 6A rated current.
- عزم الدوران & Size: Torque ranges from 3.44N·m to 10.6N·m, corresponding to lengths of 104mm to 184mm. A longer motor length consistently delivers higher torque, allowing adaptation to different load requirements.
- Electrical Performance: Low resistance (0.42Ω~0.7Ω) and inductance (3.2mH~8mH) reduce torque drop at high speeds and improve response efficiency.
3. Application Suitability
It is well-suited for equipment where space savings and simplified wiring are priorities, such as small CNC machines, precision conveyors, automated sorting systems, and compact robotic arms.
