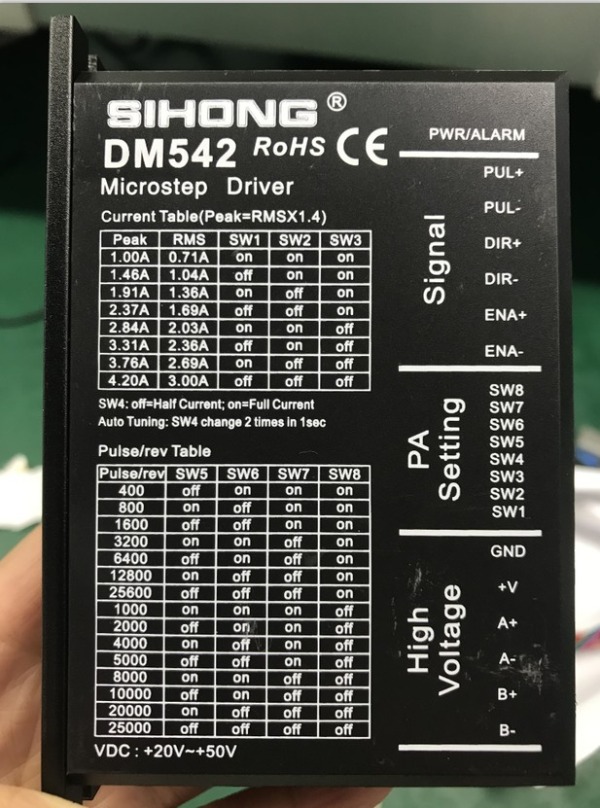

DM542
$0.00
Drive 4 – wire, 8 – wire two – phase stepper motor
Voltage input range: 20-50 في دي سي
Current maximum: 4.2a,
Subdivision range: 400~25000ppr
Signal input: differential/single end, pulse/direction or double pulse, 5-24vdc level compatible
Pulse response frequency: 200KHz
Automatic setting of power on parameters
Precision current control reduces the heating of the motor
- وصف
وصف

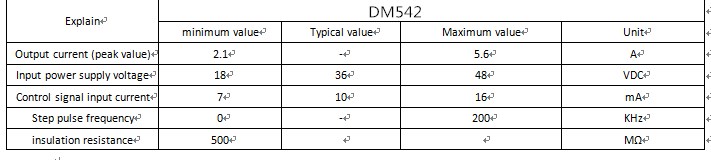

1. Electrical index

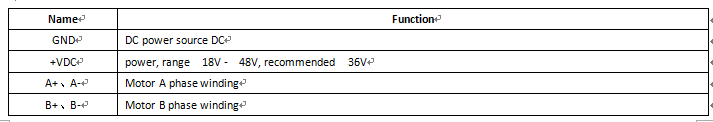

أ: Power interface

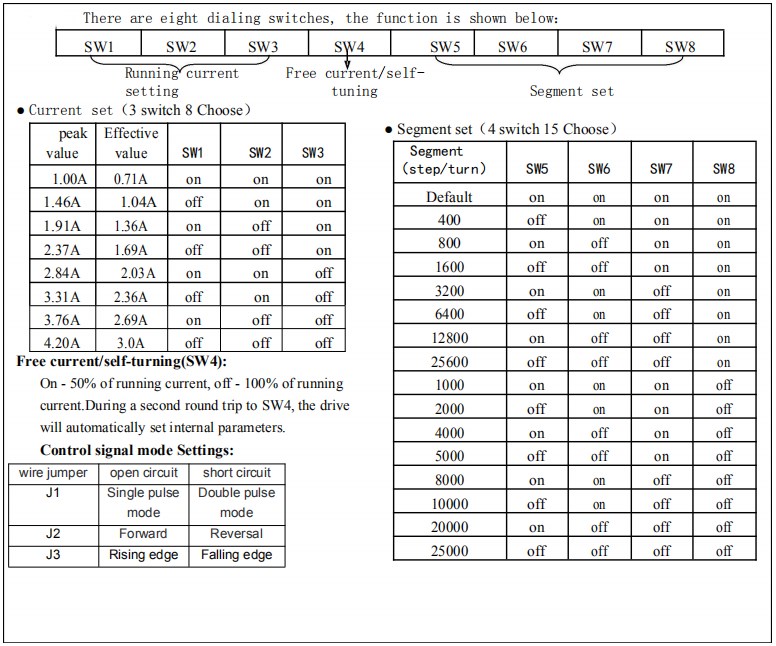

2. Dial code setting
1) operating current setting
