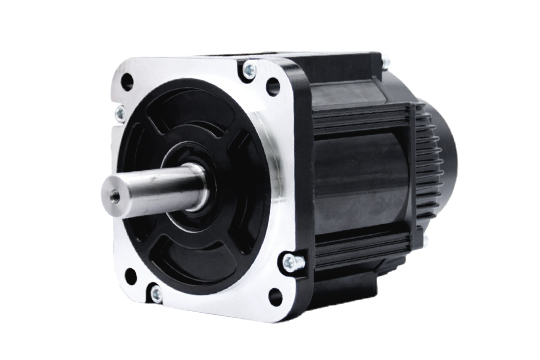

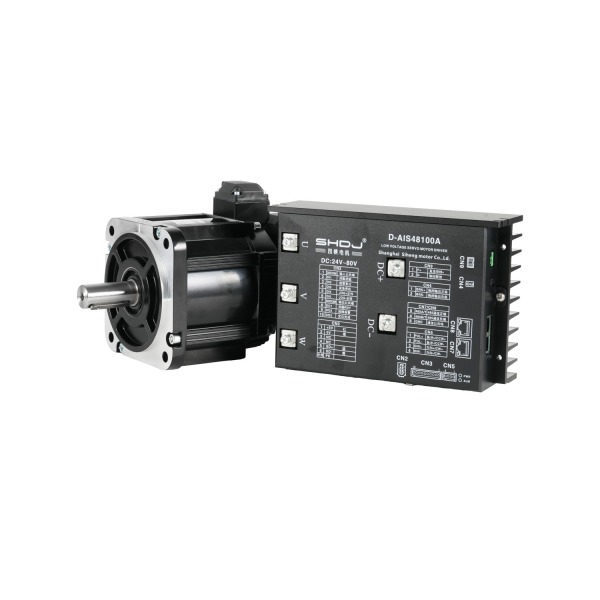

180DC-Servomotor und Treiber der mm-Serie

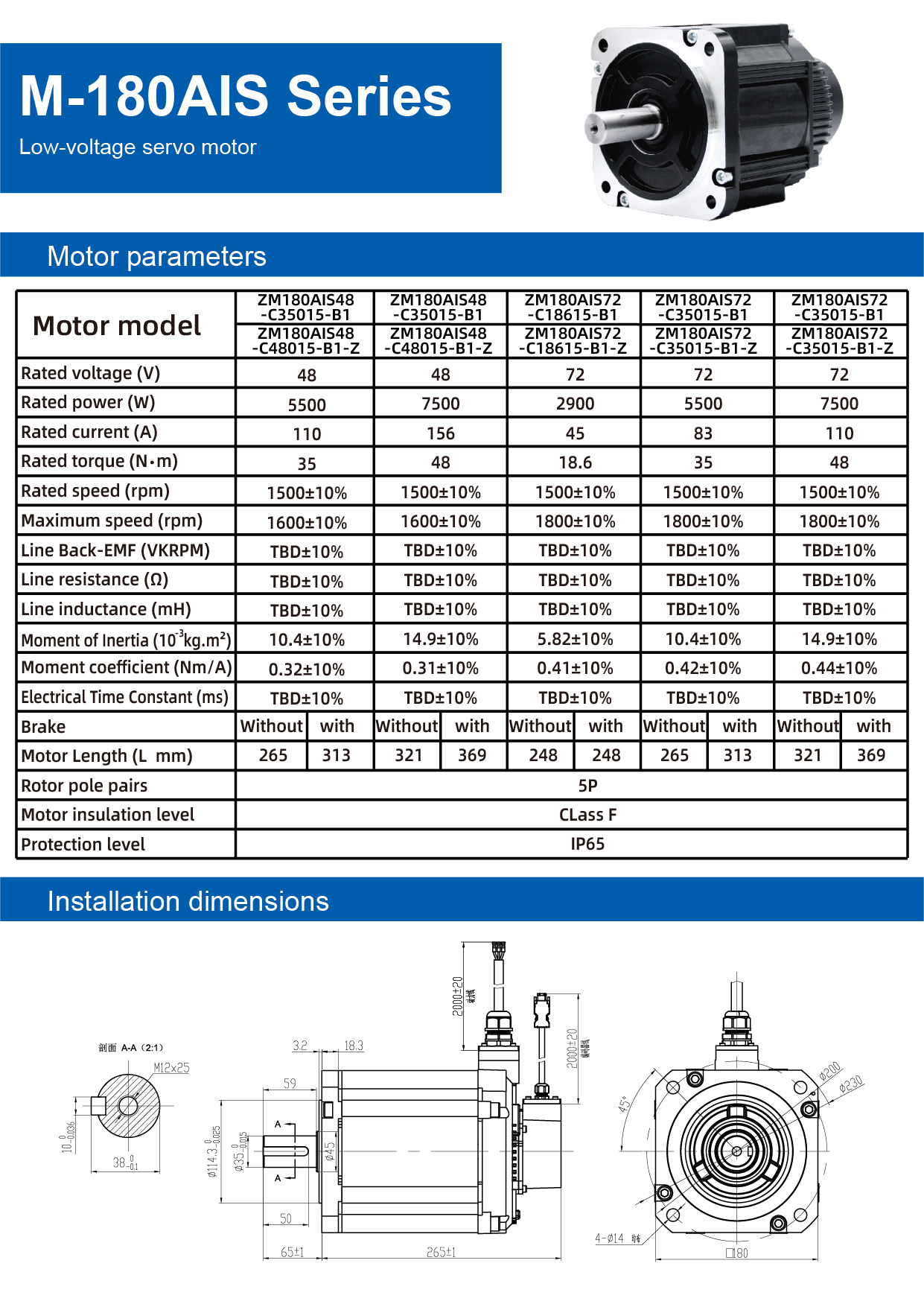

M-180AIS Series (Low-voltage Servo Motors) Key Specs

5 core models (48V/72V, 5 rotor pole pairs; Isolierung der Klasse F, IP65 protection):

• Voltage/power ranges: 48V (5500W/7500W) | 72V (2900W/5500W/7500W)
• Wichtige Spezifikationen: Rated torque 18.6–48N·m; rated speed 1500rpm (max 1600–1800rpm); inertia 5.82–14.9×10⁻³kg·m².
• Optionen: With/without brake (adds ~48mm to length); lengths 248–369mm.
• Notizen: Some electrical specs (back-EMF, resistance) are TBD (±10% tolerance).
