28DC-Servomotor und Treiber der mm-Serie

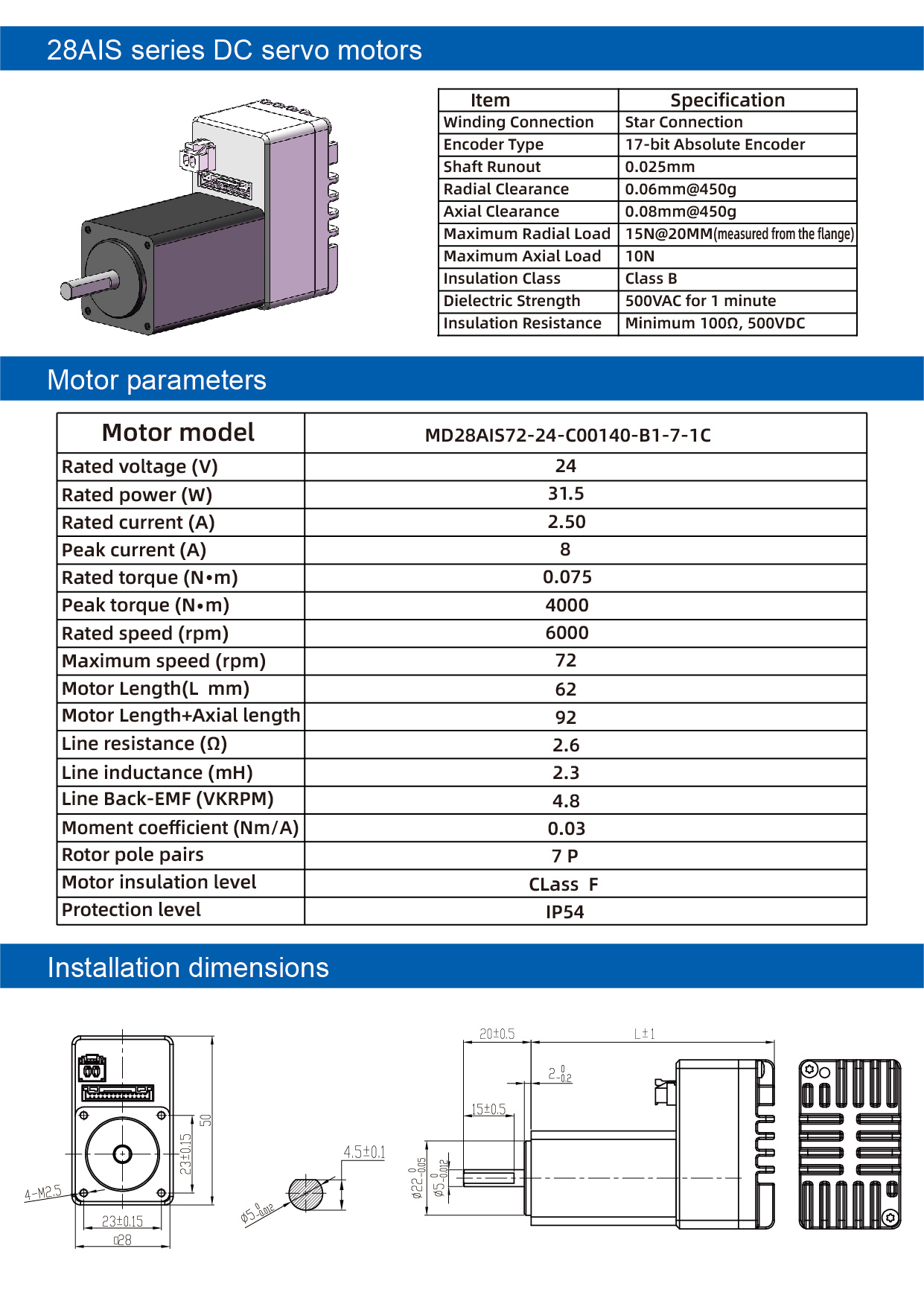

28DC-Servomotor der AIS-Serie (MD28AIS72-24-C00140-B1-7-1C) Key Specs

• Electrical: 24V, 31.5W, 2.5A (rated)/8A (peak); 0.075N·m (rated)/4000N·m (peak); 6000U/min (rated)/72U/min (max).
• Mechanical: Length 62mm (total 92mm); IP54; max radial load 15N, axial load 10N.

Other: 17-Bit-Absolutwertgeber; 485/CAN communication.
