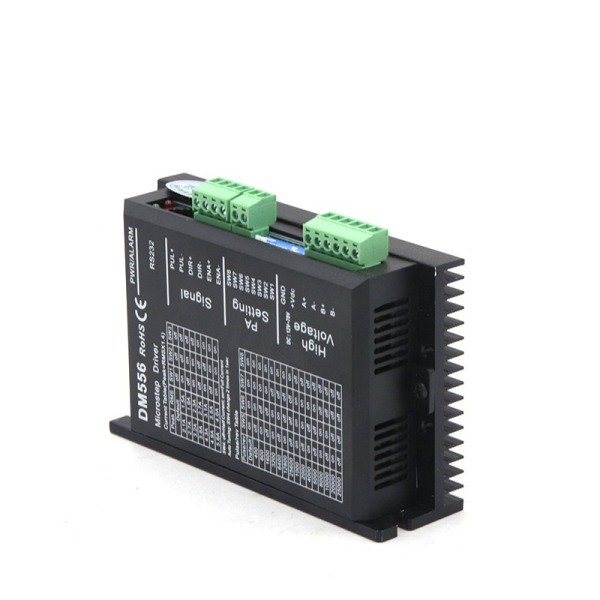

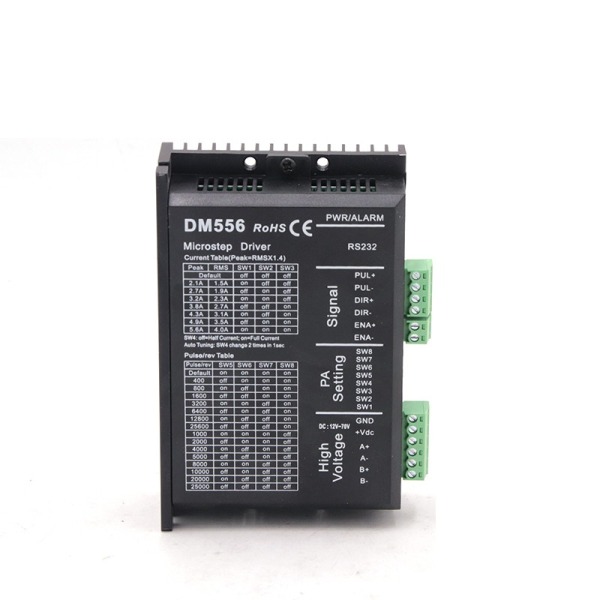

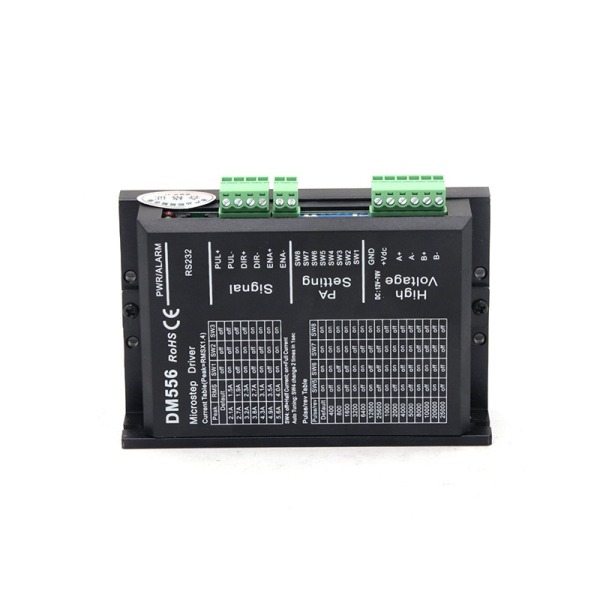

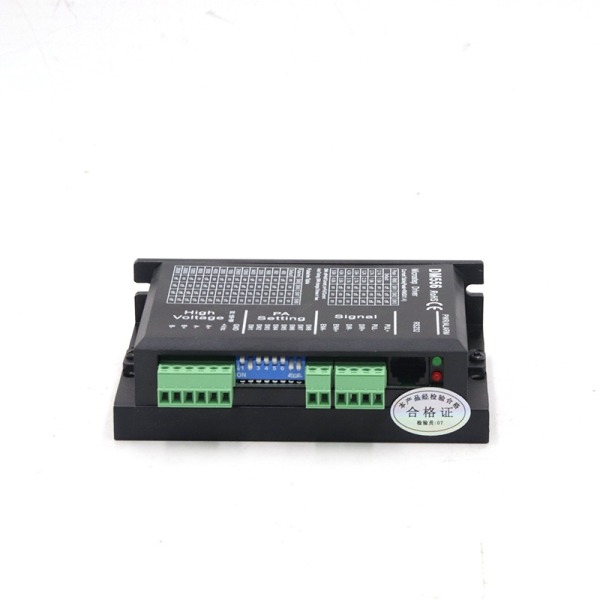

DM556
$0.00
Drive 4 – wire, 8 – wire two – phase stepper motor
Voltage input range: 18~60V
Current maximum: 5.6A
Subdivision range: 400~40000ppr
Signal input: differential/single end, pulse/direction or double pulse, 5-24vdc level compatible
Pulse response frequency: 200KHz
Automatic setting of power on parameters
Precision current control reduces the heating of the motor
- Descripción
Descripción
1. Electrical index

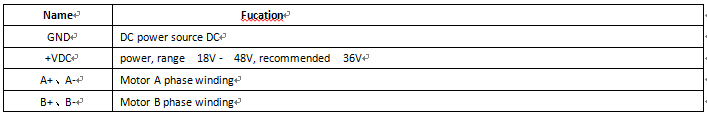

Interfaz de energía
Running current setting

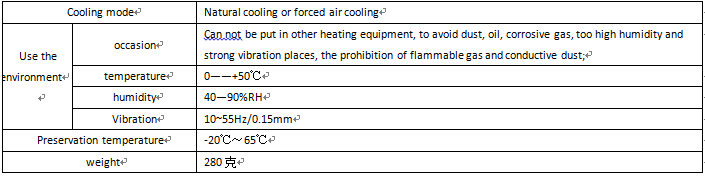

use of environment and parameters
