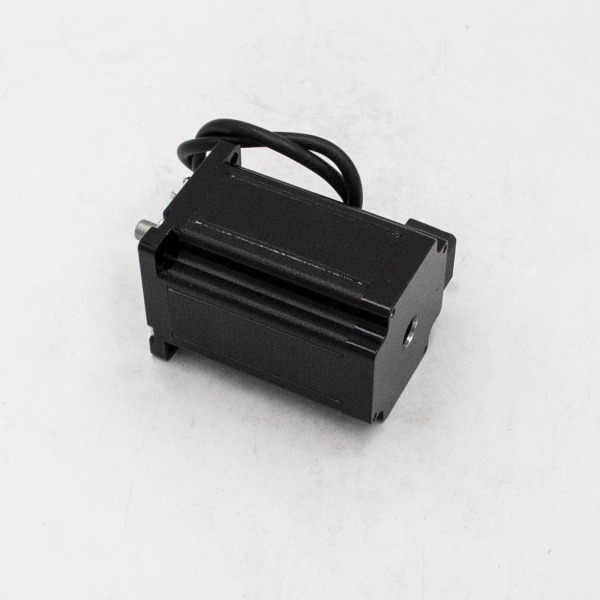

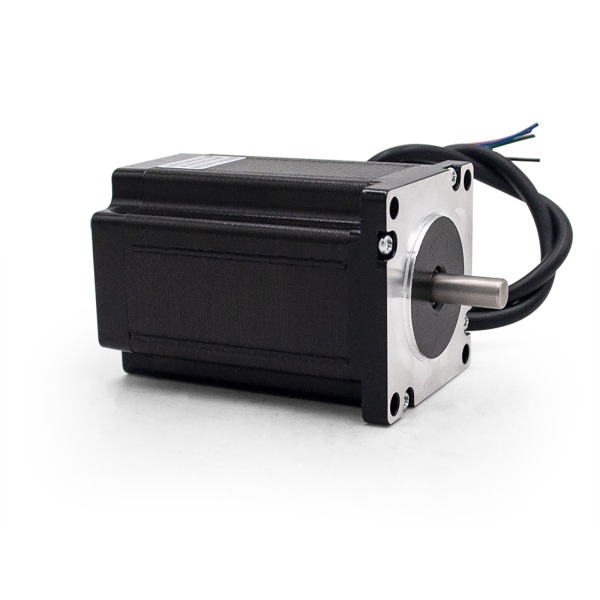

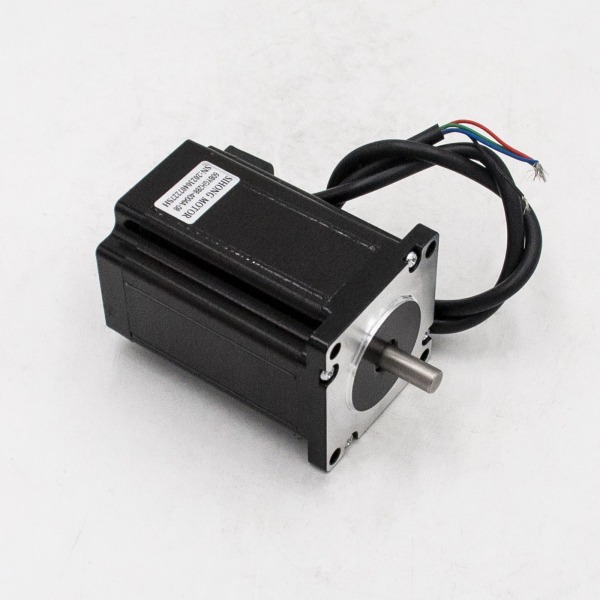

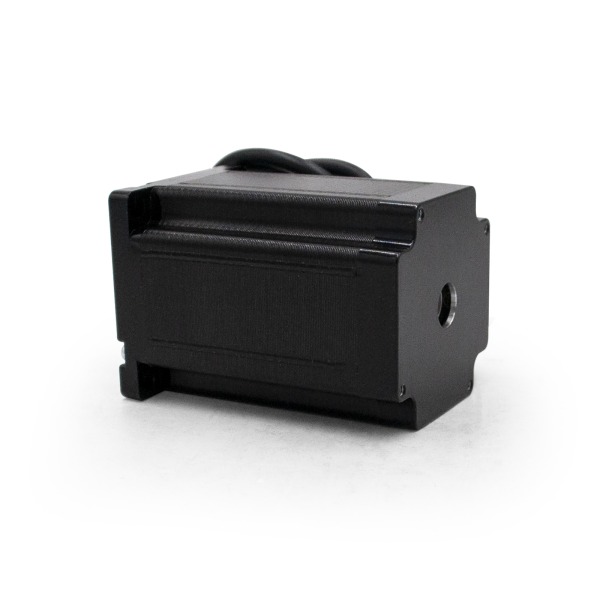

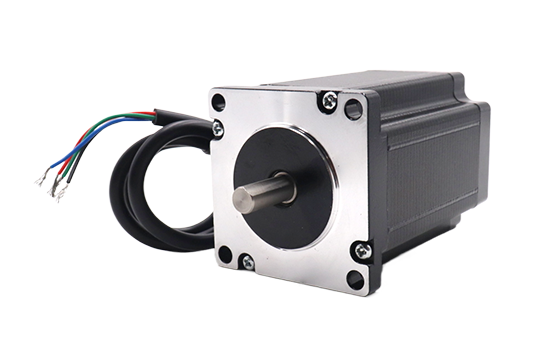

60BYGH1.8 two-phase open-loop stepper motor

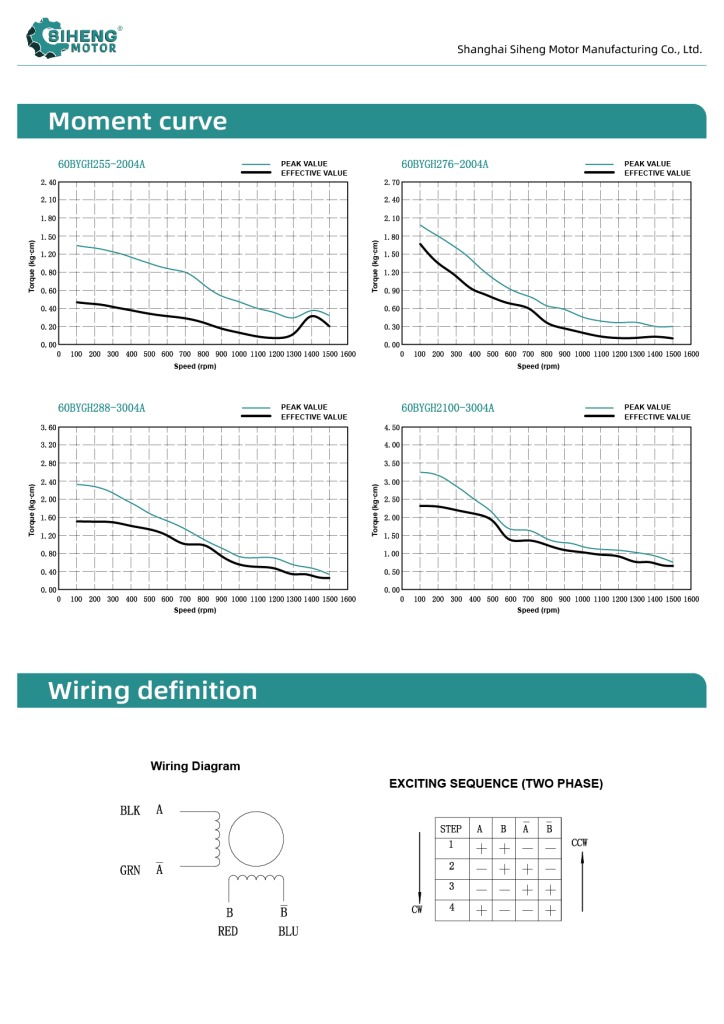

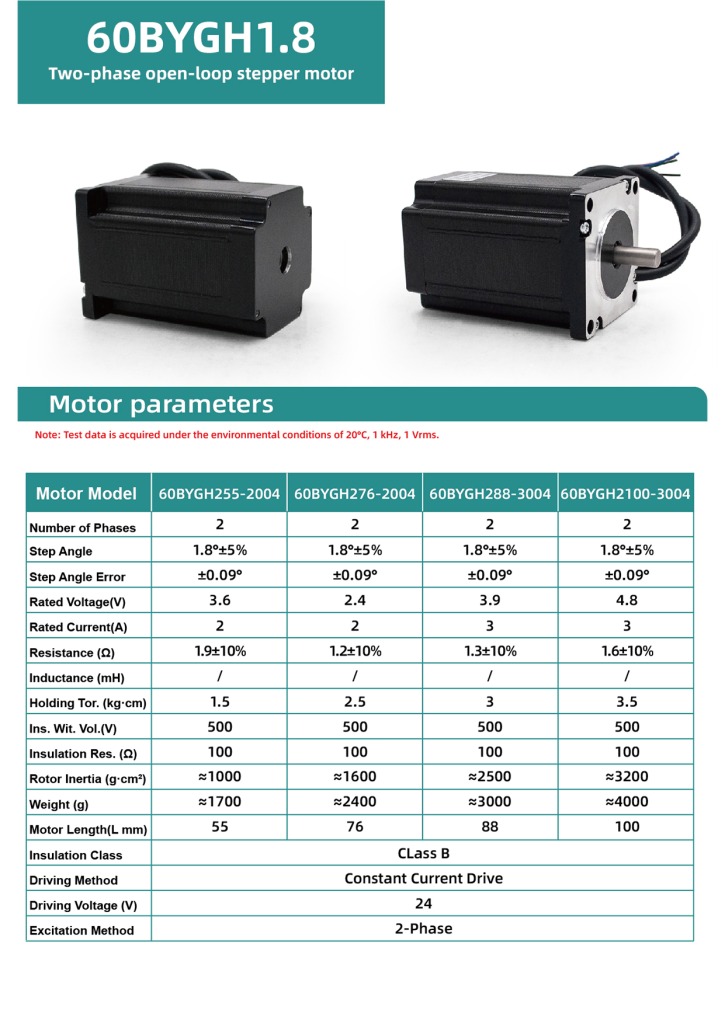

It is a 1.8° Moteur pas à pas biphasé en boucle ouverte made by Shanghai Siheng Motor Manufacturing Co., Ltd., y compris 4 models (60BYGH255-2004 to 60BYGH2100-3004). Spécifications clés: rated voltage 2.4-4.8V, rated current 2-3A, holding torque 1.5-3.5 kg·cm, weight 1700-4000g, motor length 55-100mm. It adopts constant current drive (24V), 2-phase excitation, Class B insulation, 500V insulation voltage, and 100Ω insulation resistance, with torque-speed curves and wiring diagrams.
