PF 142 Riduttore L1 -5-P2-S2 per servomotore

PF 130 Riduttore L1 -5-P2-S2 per servomotore da 180 mm
PF 215 Riduttore L2 -25-P2-S2 per servomotore

$0.00

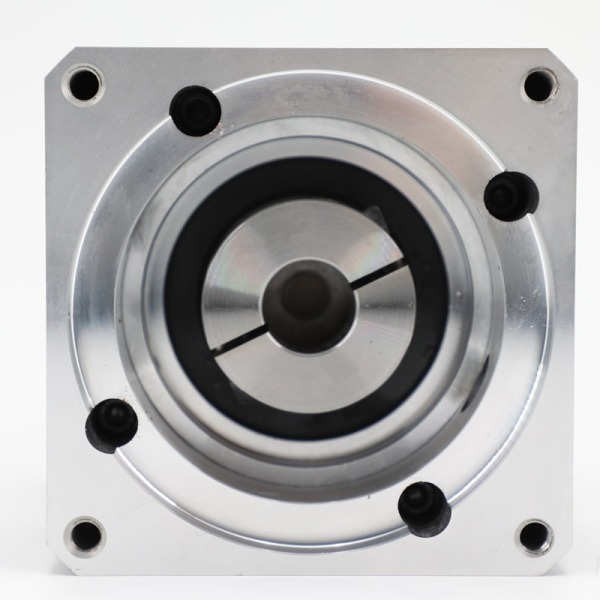

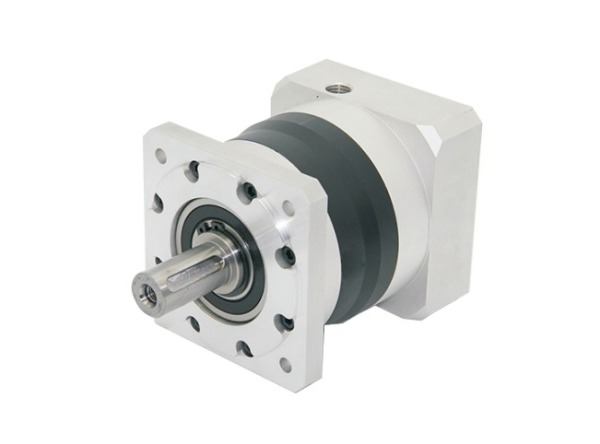

PF 142 L1 -5-P2-S2 gearbox,the output shaft diameter is 42mm.It used for ac servo motor,input diameter is 42mm.,,

Categoria: Tag: , , ,

Descrizione

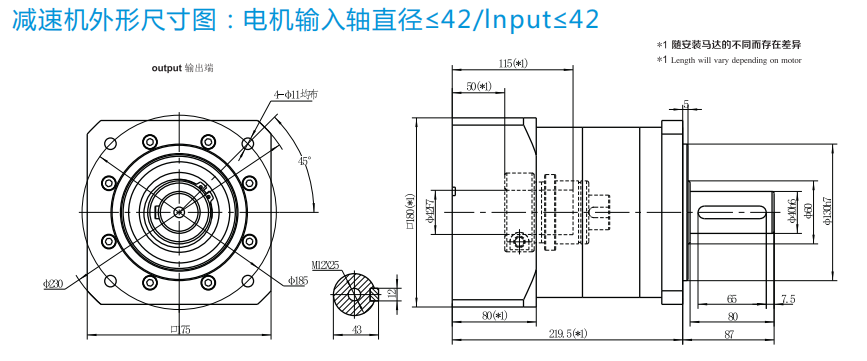

Gearbox Drawing

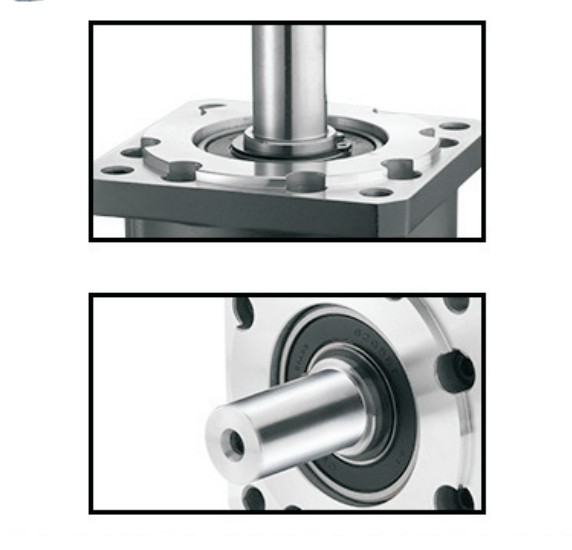

Gearbox Output Type

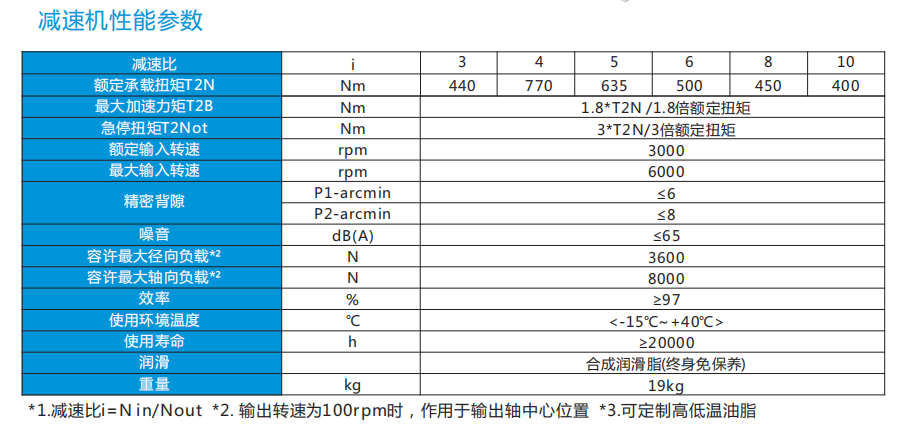

Gearbox Performance Parameters
