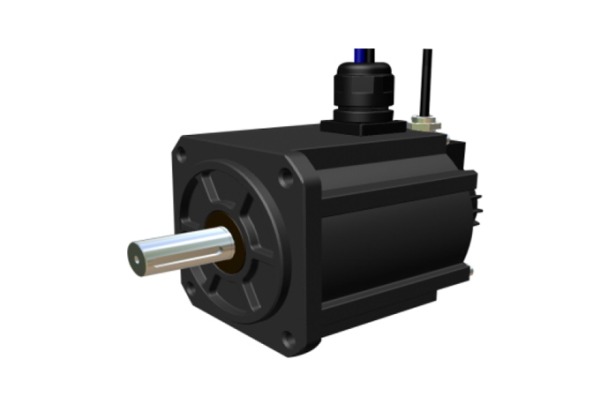

130mmシリーズDCサーボモータとドライバ

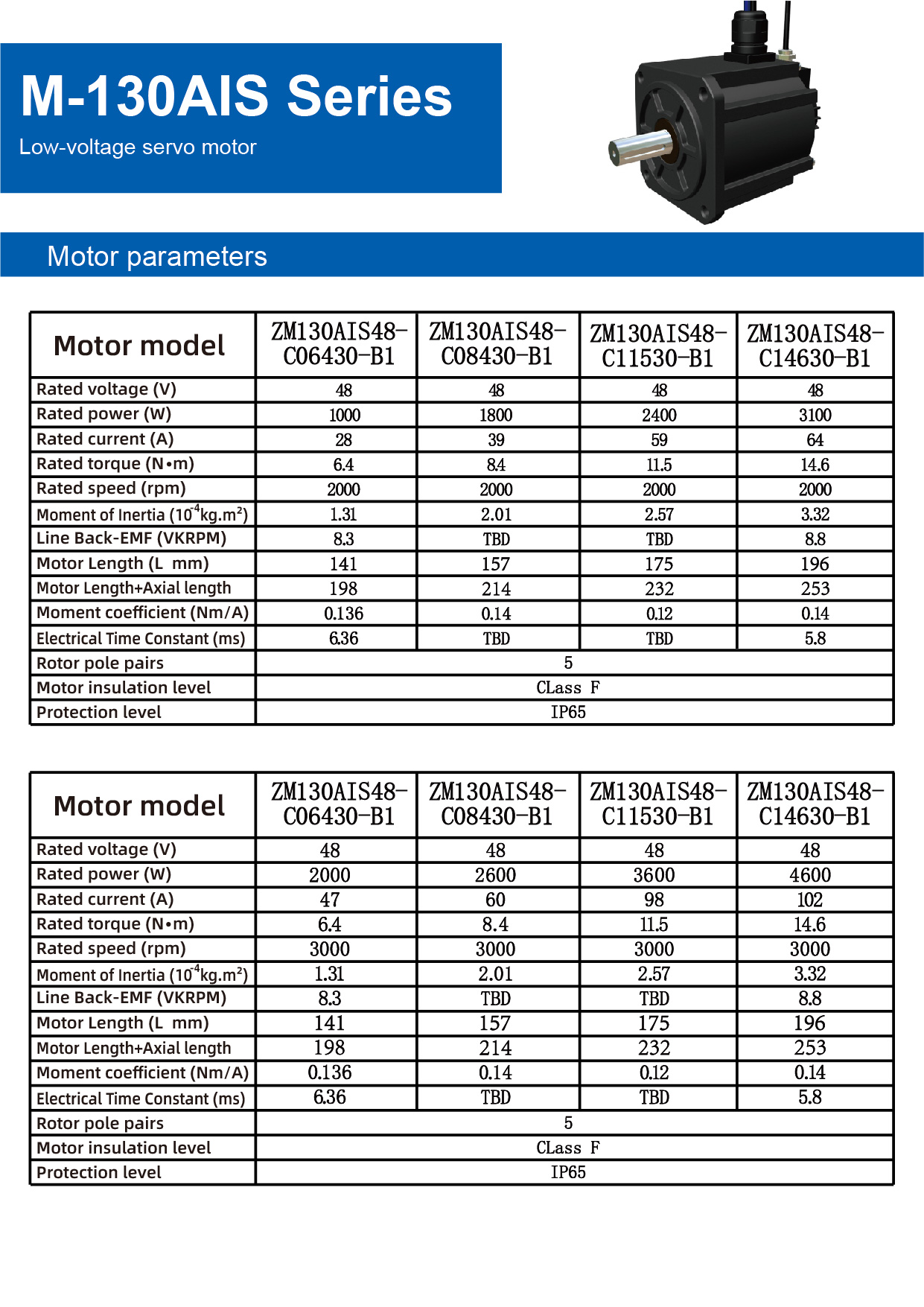

M-130AIS Series (Low-voltage Servo Motors) Key Specs

4 core models (all 48V/72V options; 5 rotor pole pairs, F種絶縁, IP65 protection):

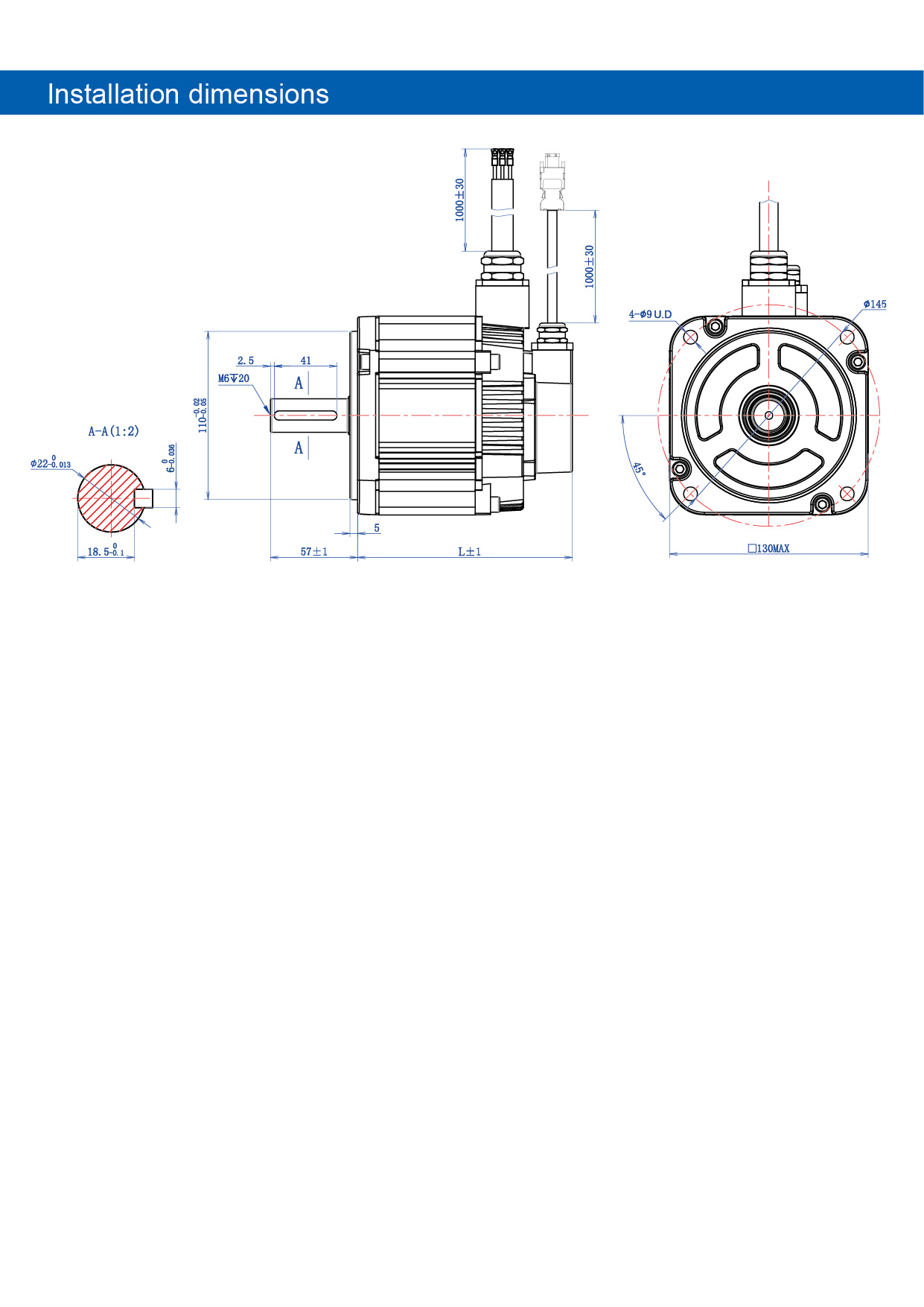

• Shared traits: Rated speed 2000/3000rpm; lengths 141–196mm (total 198–253mm); inertia 1.31–3.32×10⁻⁴kg·m².

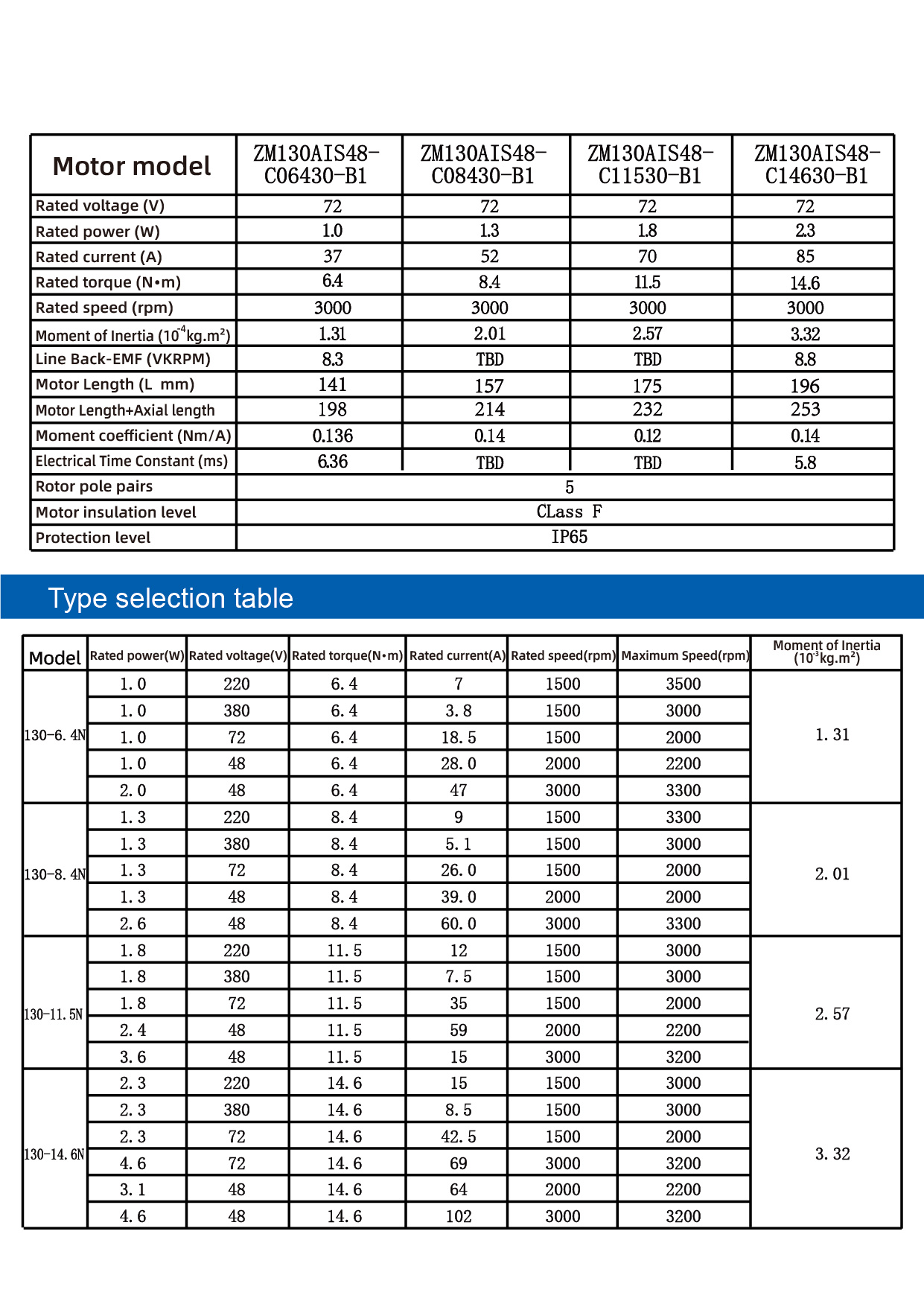

• Power/torque ranges: 1000–4600W; 6.4–14.6N·m (rated); current 28–102A (varies by voltage/power).
• Other: Back-EMF 8.3–8.8VKPRPM (some TBD); moment coefficient ~0.12–0.14Nm/A.
