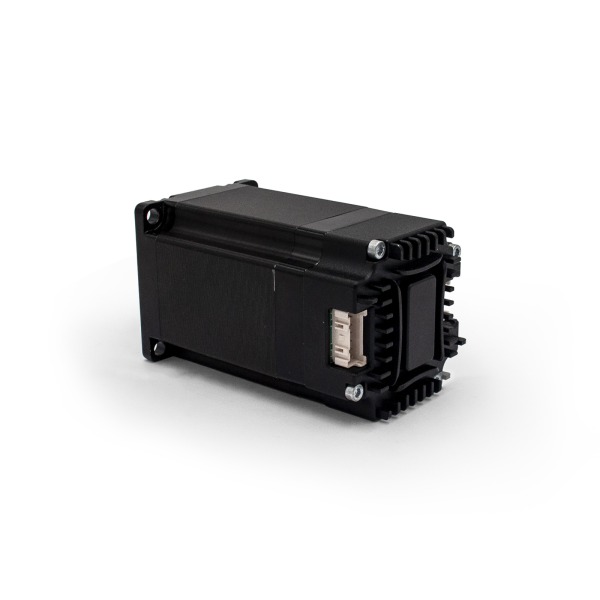

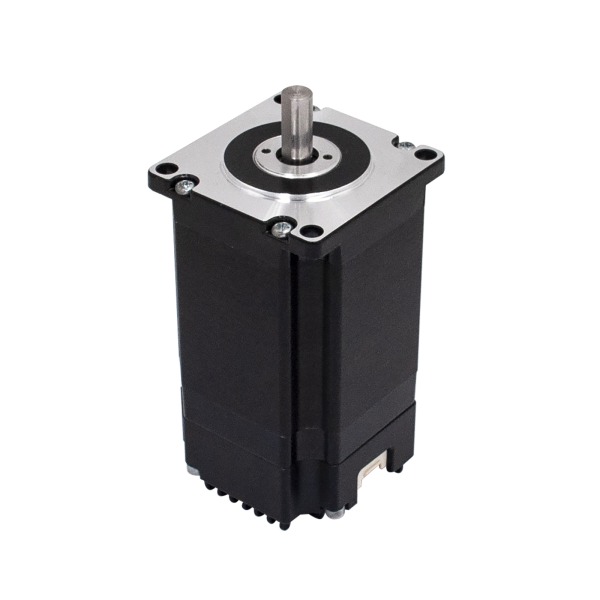

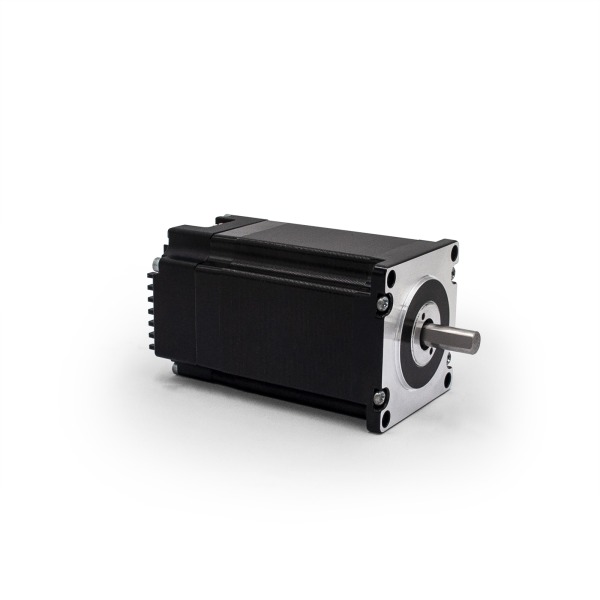

57mm flange Integrated Driver Stepper Motor
$0.00
Key Features & Application Notes
- Product Type: This is a 57-series hybrid stepper motor (identified by the “MD57HS” prefix), commonly used in industrial applications. It supports dual voltage input (24V/48V).

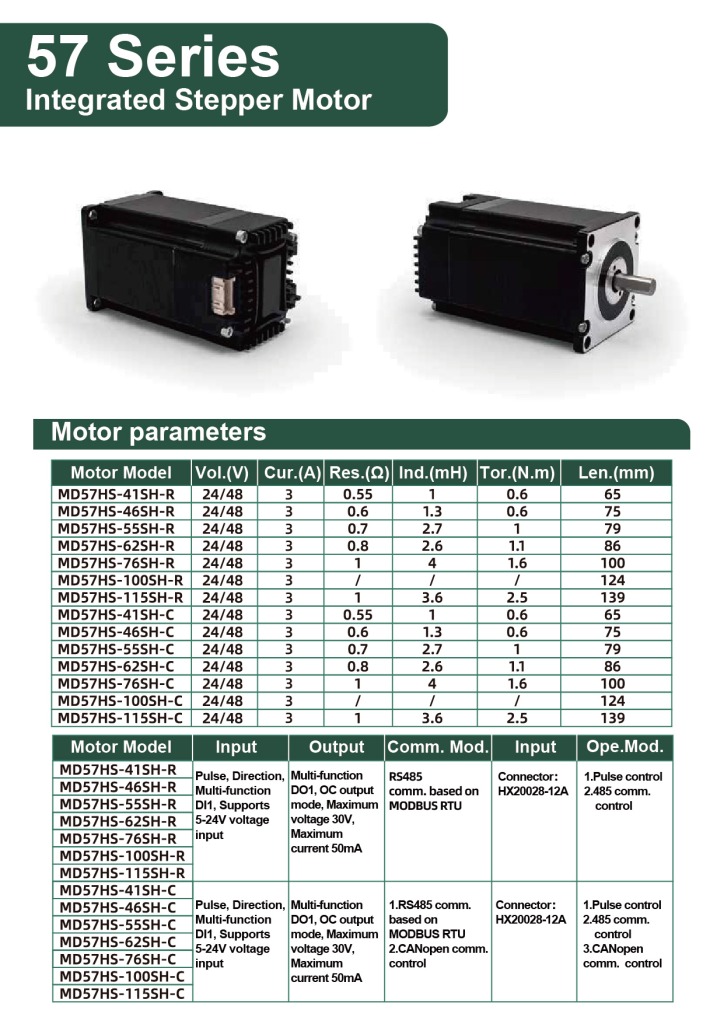

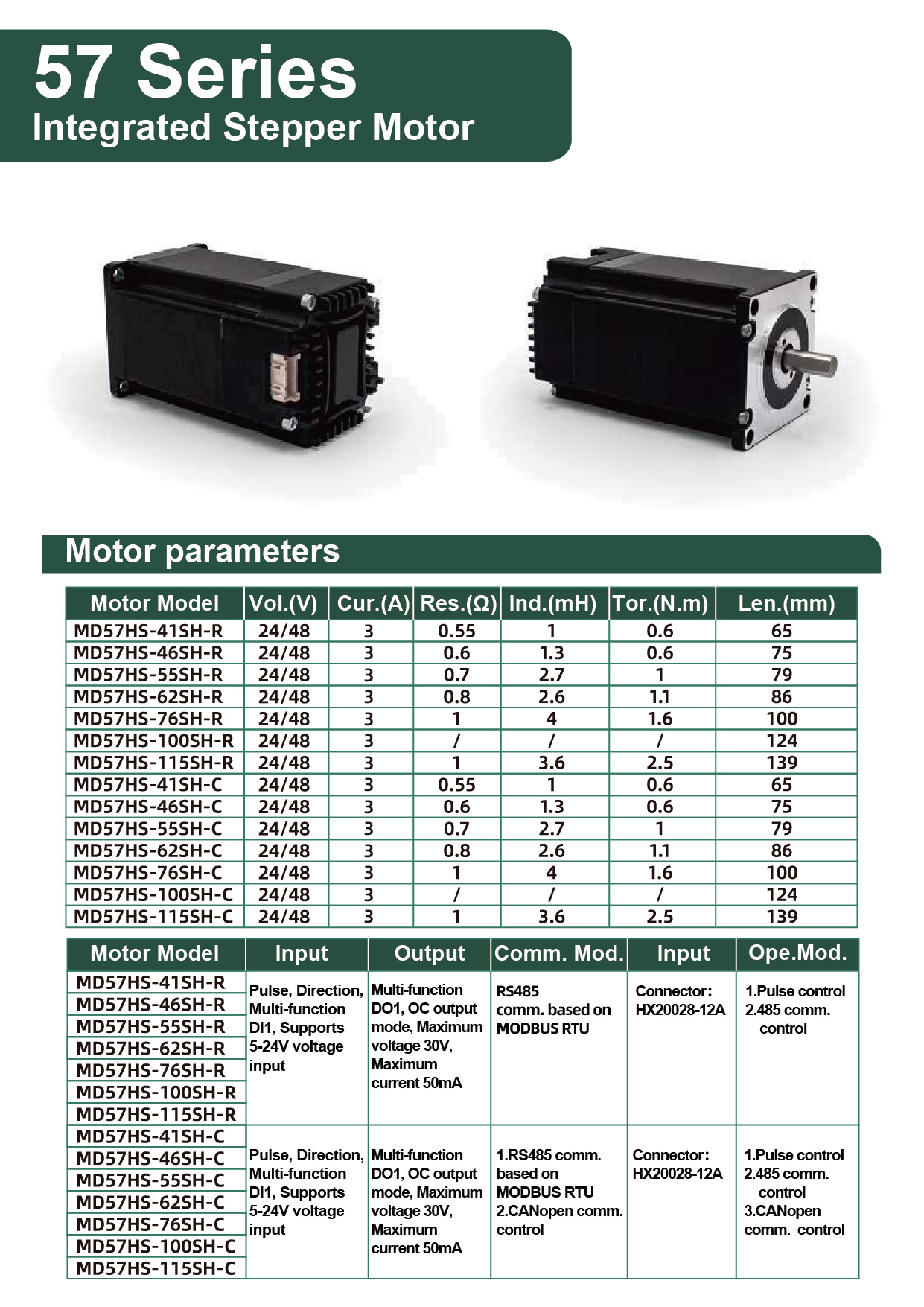

- Parameter Trends:
- Generally, longer motor length (Len.) corresponds to higher torque (Tor.) (e.g., the 139mm-long models deliver up to 2.5N.m of torque).
- Variations in resistance (Res.) and inductance (Ind.) affect the motor’s response speed and heat generation characteristics.
- Typical Applications: Suitable for equipment requiring precise position control, such as 3D printers, CNC machines, automated assembly lines, and precision instrumentation.
- Description
Description
