PF 215 Caixa de velocidades L2 -25-P2-S2 para servo motor

PF 130 Caixa de engrenagens L2 -25-P2-S2 para servo motor de 180 mm
Caixa de engrenagens PX para motor de passo de 57 mm 60 mm 86 mm 110 mm

$0.00

PF 215 L2 -25-P2-S2 gearbox,the output shaft diameter is 42mm.It used for ac servo motor,input diameter is 42mm.,,

Categoria: Tags: , , ,

Descrição

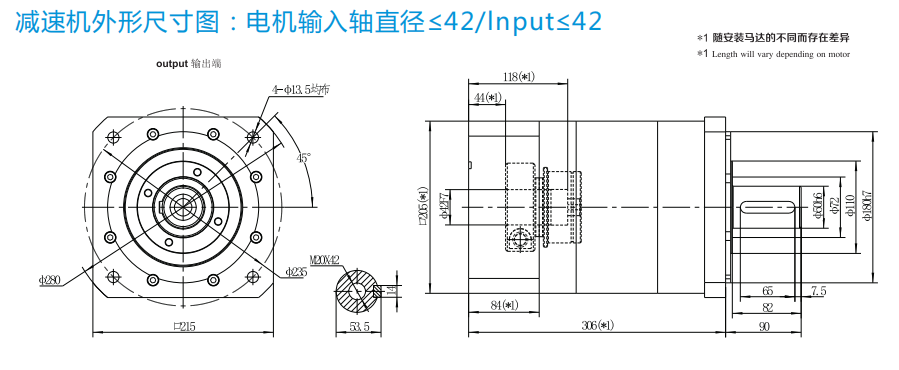

Gearbox Drawing

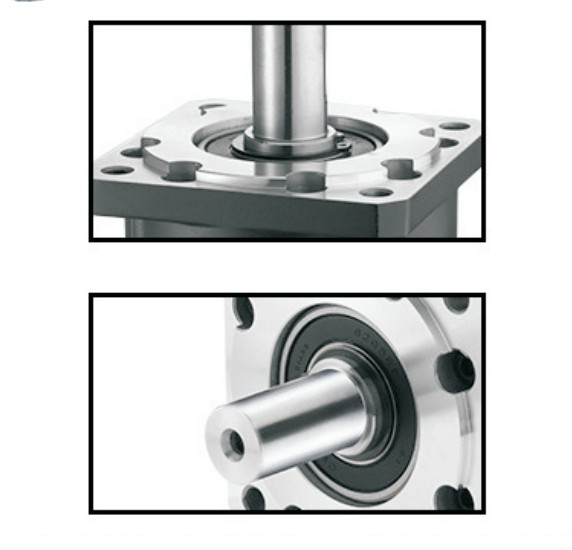

Gearbox Output Type

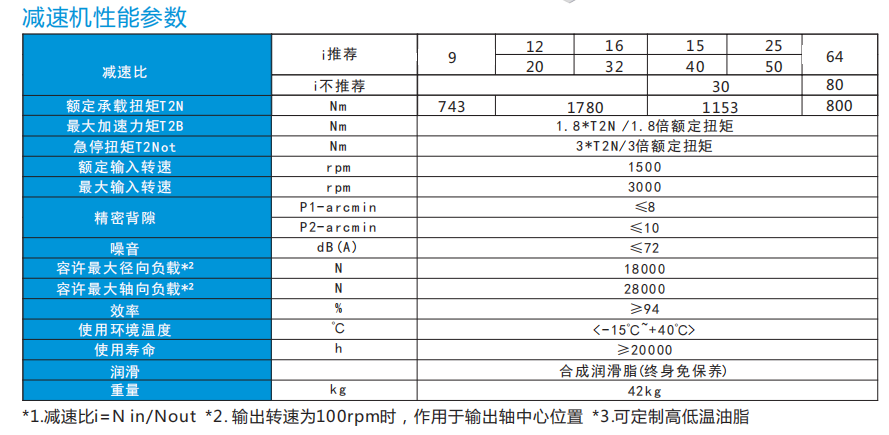

Gearbox Performance Parameters
