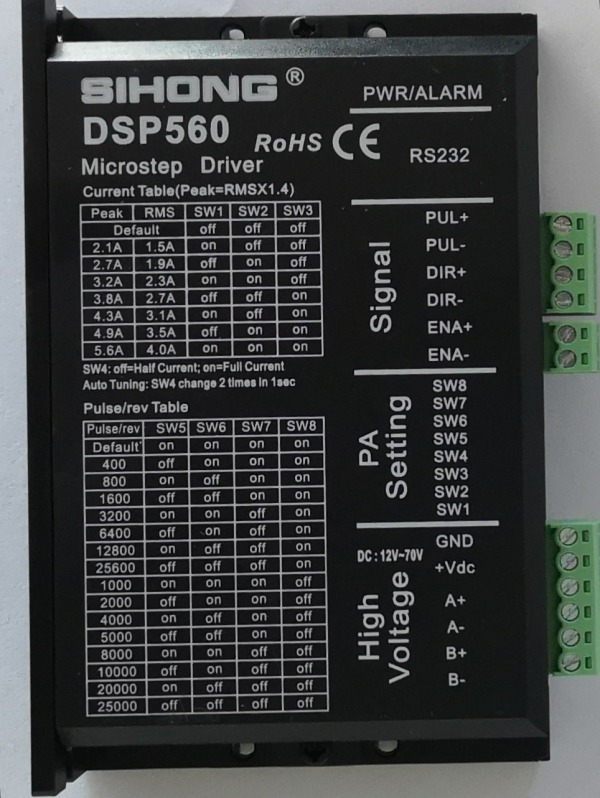

ДСП560

Drive 4 – wire, 8 – wire two – phase stepper motor

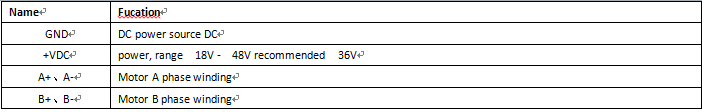

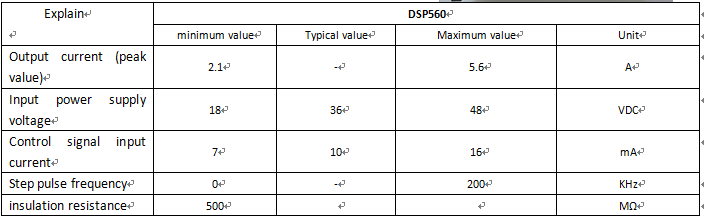

Voltage input range: 20-60В постоянного тока

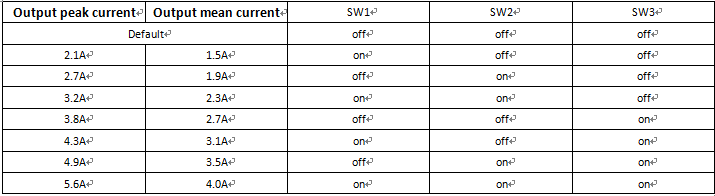

Current maximum: 5.6А

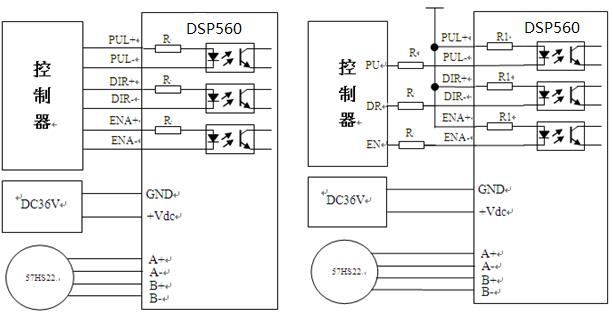

Signal input: differential/single end, pulse/direction or double pulse, 5-24vdc level compatible

Automatic setting of power on parameters

Precision current control reduces the heating of the motor
