WPF 115 L1 -5-P2-S2 130mm 伺服电机齿轮箱

WPF 040 L1 -5-P2-S2 40mm 伺服电机变速箱
WPF 115 L2 -25-P2-S2 130mm 伺服电机齿轮箱

$0.00

WPF 080 L1 -5-P2-S2 gearbox,the output shaft diameter is 24mm.It used for 130mm ac servo motor,input diameter is 24mm.,,

分类： , 标签： , , ,

描述

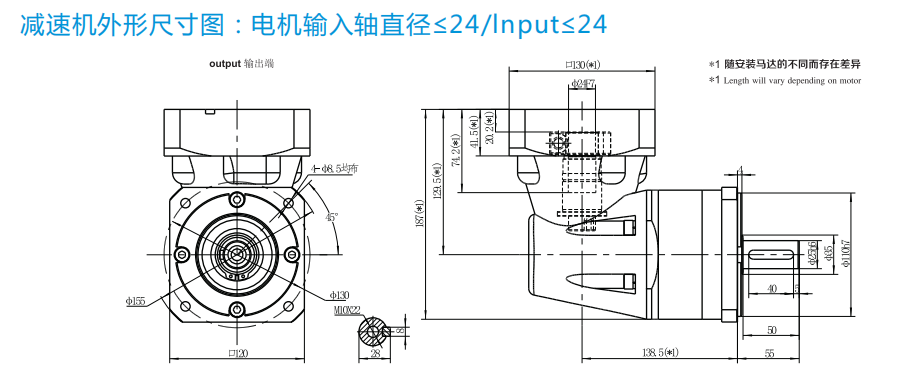

Gearbox Drawing

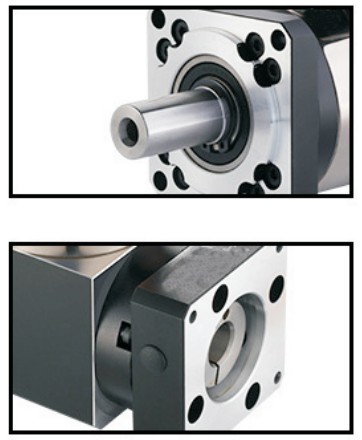

Gearbox Output Type

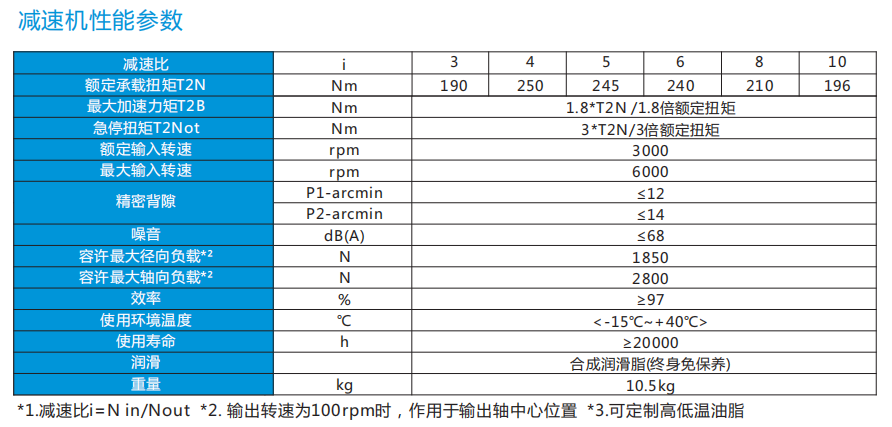

Gearbox Performance Parameters
