Servo motor DC integrado série ZMD80AIS com cabo de saída direta WIItha

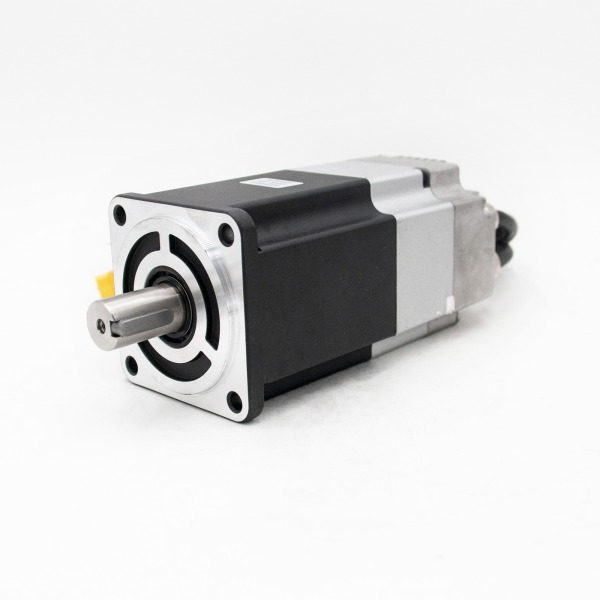

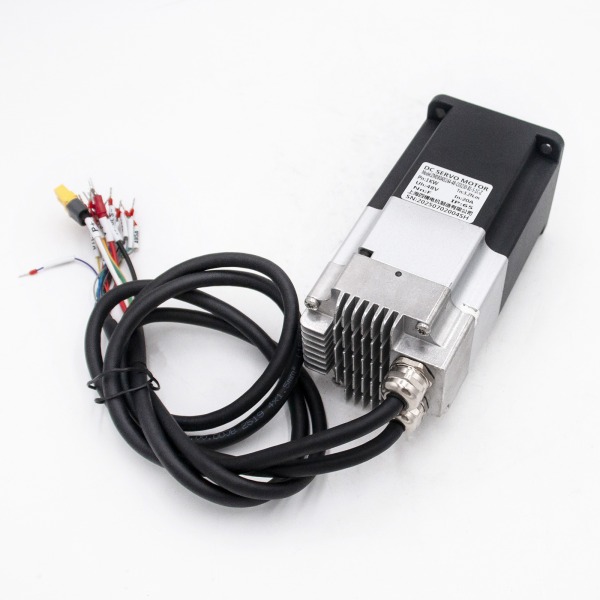

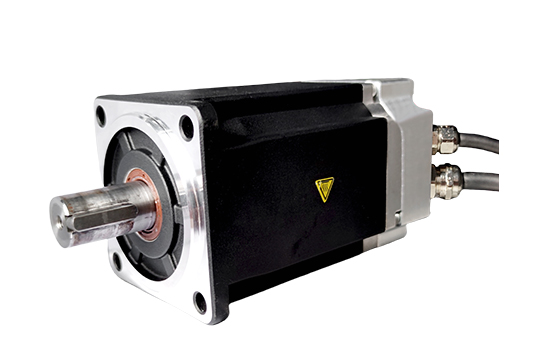

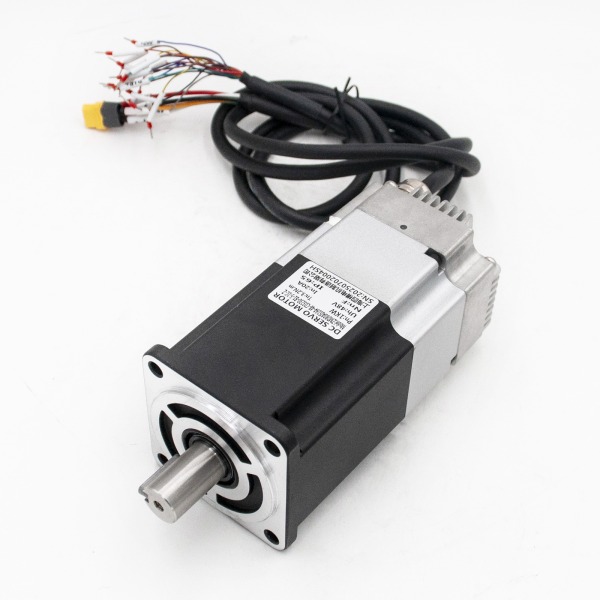

ZMD80AIS Series Integrated Rear Cable Outlet Intelligent Servo Motor—a key feature is its motor-integrated cable design (no separate wiring).
Key details:

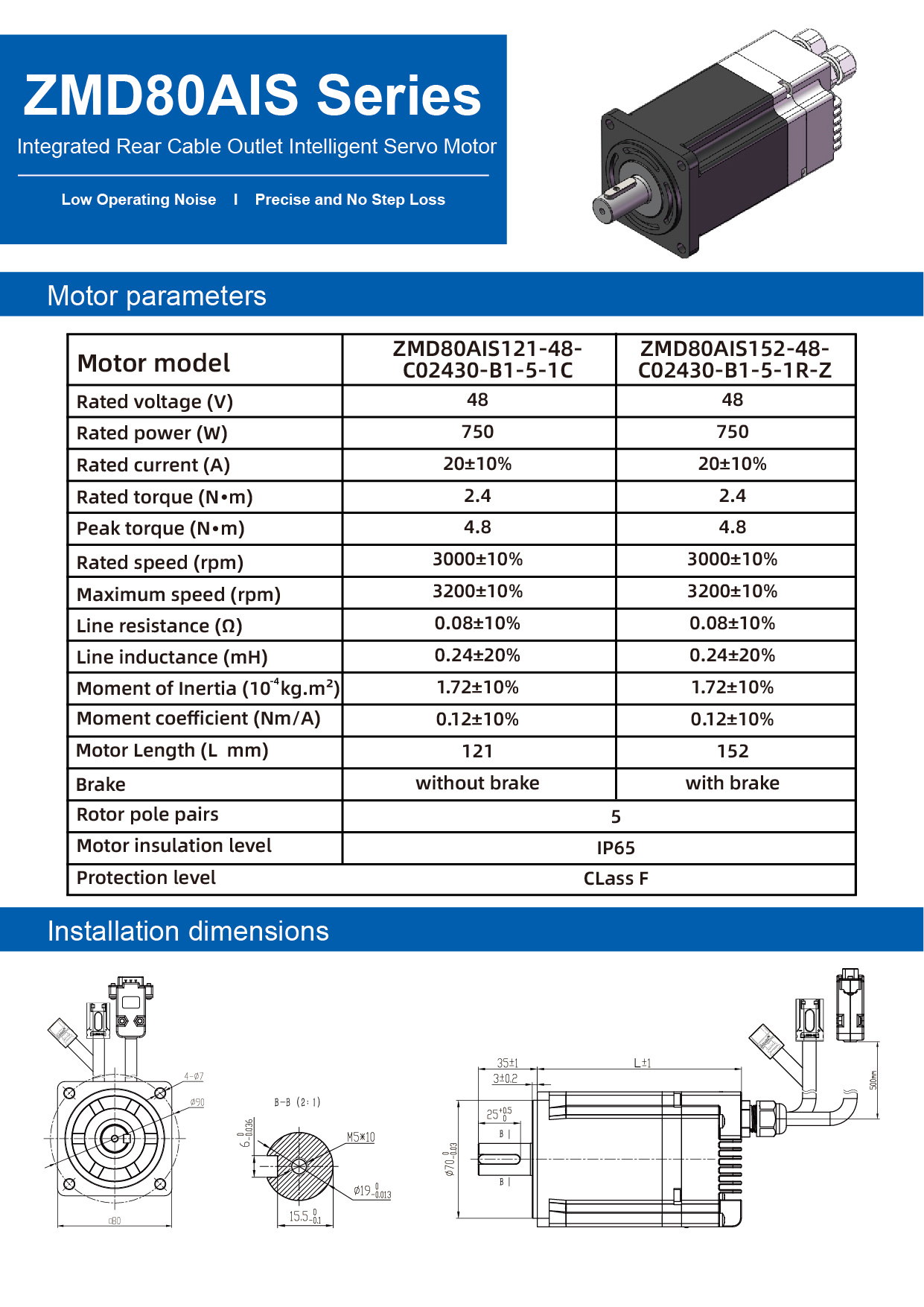

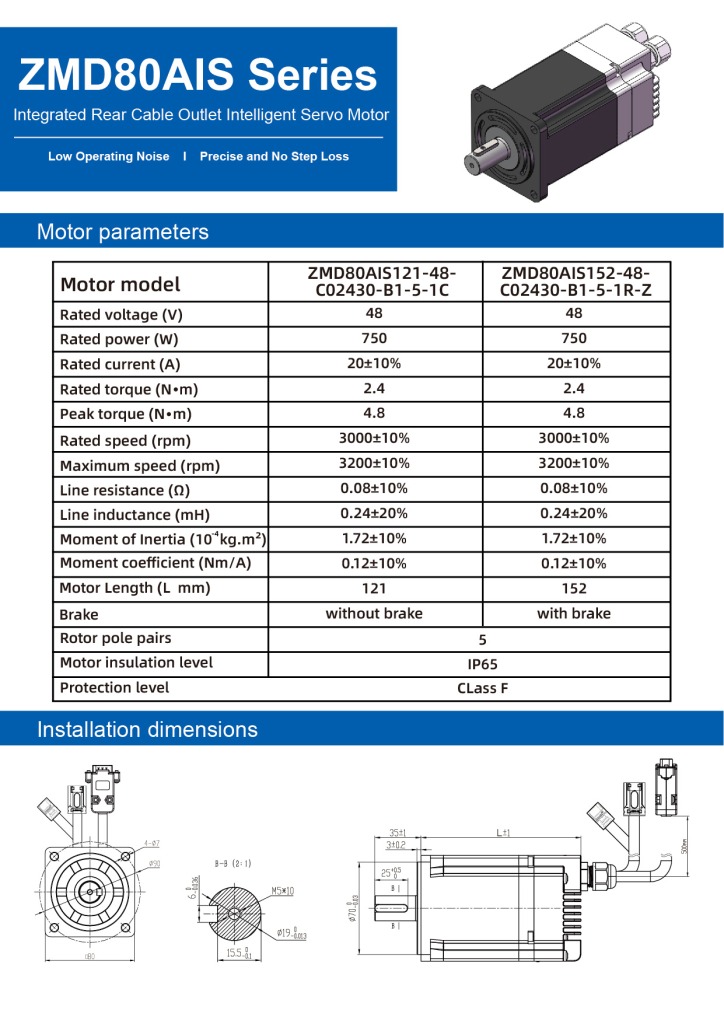

- Models (ZMD80AIS121/152): 48V, 750C, 20UM; 2.4Torque nominal N·m (4.8N·m peak); 3000velocidade nominal rpm (max 3200rpm).
- Options: with/without brake; lengths 121–152mm.
- Protection: IP65 (dust/water-resistant); insulation Class F.

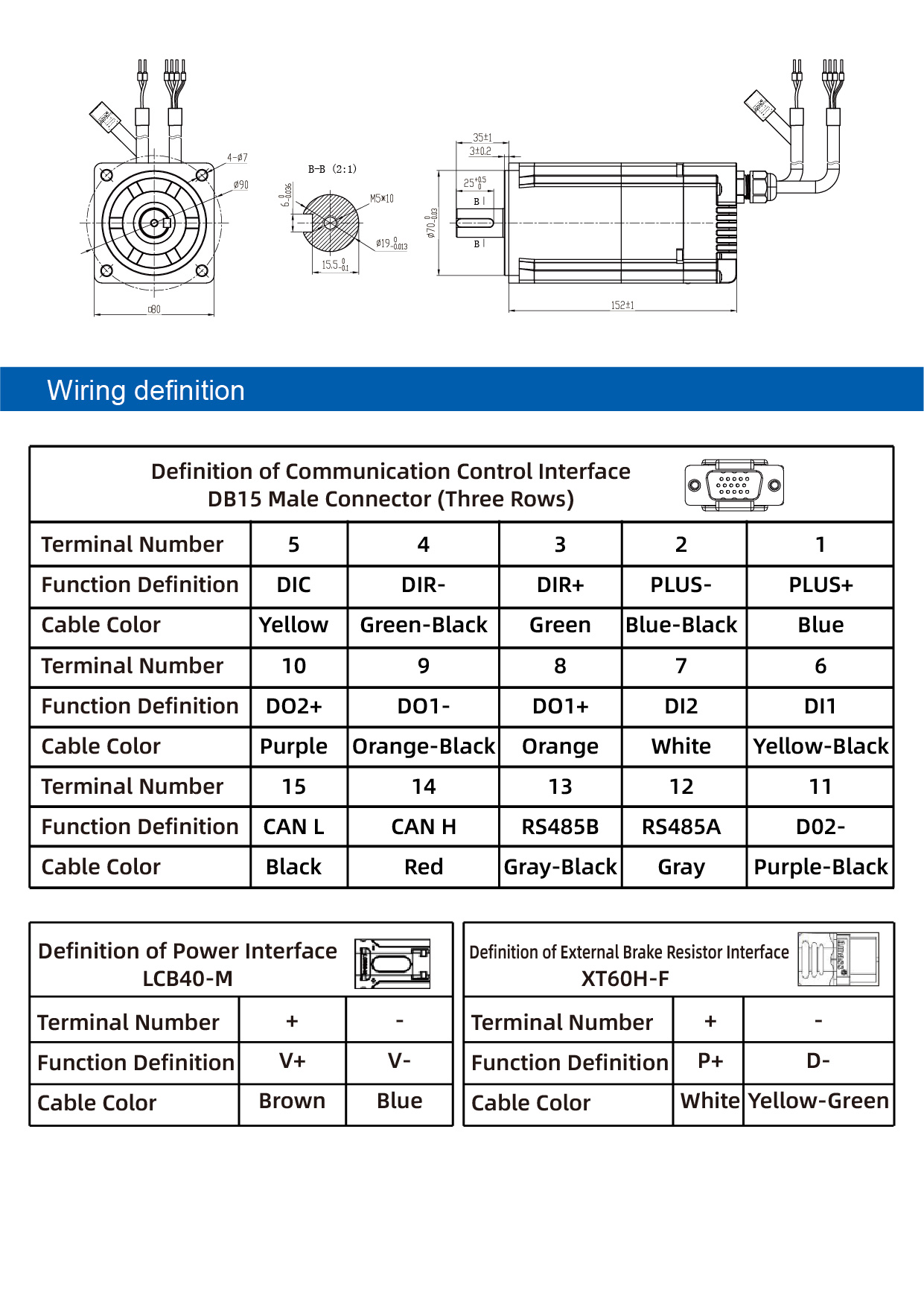

- Interfaces: DB15 communication (supports CAN/RS485), LCB40-M power, and XT60H-F brake resistor port.
It offers low noise, precise positioning, and is ideal for applications needing integrated wiring and environmental resilience.
- Descrição
Descrição
Especificações do produto
| Modelo | Tensão (VAC) | Atual (UM) | Torque (Nm) | Peso (kg) | Comprimento do corpo (milímetros) | PDF de especificação | 3Diagrama D (SolidWorks) |
| ZMD80AIS121-48-C02430-B1-5-1C | 48 | 20±10% | 0.12±10% |
